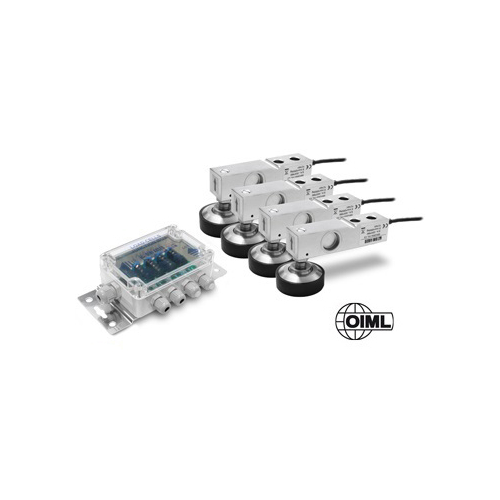

Ideal for creating platforms with 4 load cells of various sizes and capacities. The kit is made up of 4 1000 Ohm IP68 stainless steel load cells, OIML approved, together with adjustable stainless steel resting feet and an equalisation box.

LOAD CELL TECHNICAL FEATURES

• C3 precision class
• Made in stainless steel with laser welding
• IP68 protection against dust and water.
• Capacities from 500 to 2000 kg (for each cell)
• Minimum load cell verification interval: Vmin = EMax / 10.000
• Maximum number of verification intervals: nLC = 3000
• Combined error: 0,017% of Full Scale Output (F.S.)
• Full Scale Output: 2mV/V +/- 0.5%
• Temperature effect on zero: 0,002% /°C
• Temperature effect on full scale output: 0,002% /°C
• Compensated Temperature Range: -10°C/+50°C
• Operating Temperature Range: -20°C/+60°C
• Creep error after 30 minutes: 0,02% F.S.
• Maximum tolerated excitation voltage: 15 Vdc
• Input Resistance: 1100 ± 20 Ohm
• Output Resistance: 1000 ± 20 Ohm
• Insulation Resistance: >5000 MOhm
• Safe Overload: 150% F.S.
• Ultimate Overload: 300% F.S.

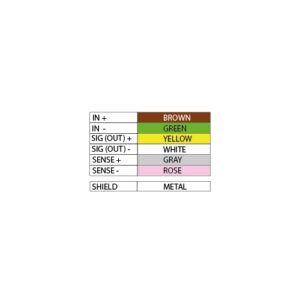

• 6-wire shielded cable, 5m long, 5 mm diameter
